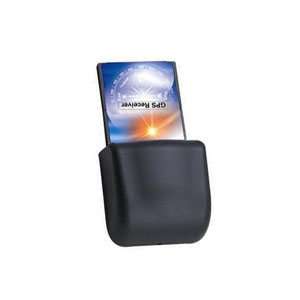

GP-GPS300 GPS/For PDA


n          Applications:

¨           Real-time personal navigation on PC, Laptop, or PDA platform.

¨           Car/Marine navigation/pilot applications.

¨           Trajectory monitoring.

¨           Resort/Entertainment application

¨           Embedded integrated system



n          Product Feature:

¨           12 Channel L1, C/A code satellite tracking

¨           Ultra low power design (0.425W)

¨           Build-in GPS antenna

¨           Easy-to-use operation

¨           Fast start up time

¨           NMEA-0183 sentences output

¨           Compact Flash type I interface

¨           Support WASS & EGNOS (upon customers’ requirement)

¨           MIL-STD-810F certified

¨           External GPS antenna is enclosed as standard package



n          Two applicable platforms:

¨           PDA platform

ü          Easy-to-use, direct operation

ü          No driver installation is necessary for PDAs

¨           Notebook PC platform

ü          Need 3rd party PCMCIA-to-CF adaptor

ü          Driver installation: Win98/ME/2000/XP driver support
magnify

Specification:

General

GP-GPS300

GPS Receiver

12 Channel “All-in-view” tracking

Interface

Compact Flash type I

Mounting

Magnetic mount.

Performance



Position Accuracy

25 meters CEP without SA

Velocity Accuracy

0.1 meters/second, without SA

Max Speed

515 meters/sec. (1000 Knots) max.

Acceleration

4 g., max.

Jerk

20 meters /sec.3 max.

Max Altitude

18,000 meters (60,000 Feet) max.

Time to First Fix

45 sec (Cold Start)

30 sec (Warm Start)

8 sec  (Hot start)

0.1 sec (Reacquisition)

Update Rate

1/sec

Receiver Sensitivity

-175dBW

Map Datum

WGS-84

Interfaces



Input Voltage

+3.3 V DC

Power Cons.

0.6 watt

Backup Power

Rechargeable Li battery

Serial Comm.

4800 baud (default)

Protocol Messages

NMEA 0183 v2.2 ASCII format

Physical



Dimensions

100 x 50x 24 mm

Weight

55g

Operating Temp

-10°C to +55°C

Storage Temp

-40°C to +71°C

EMI/EMC

CE, FCC
